Product Details
Pressure: 10 – 40 barg
Suction Pressure: max. 8 barg
Volume Flow: 8 – 80 m³/h (Booster: max. 160 m³/h)
Rated Power: 3 –18.5 kW

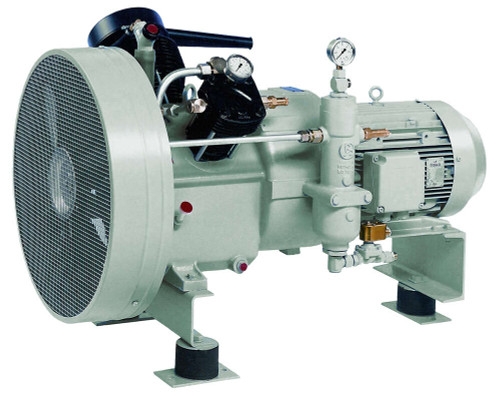

The 2-stage air-cooled compressors of the MISTRAL series have been a key contributing factor to the reputation of Sauer Compressors as reliable workhorses. Little has changed in the design of these simple and robust machines, which have been an integral part of the product range for 75 years and deliver unmatched reliability, efficiency and ease of maintenance.
Outstanding characteristics:
- Simple, rugged design
- High efficiency cooling fan
- Reliable operation, even under extreme conditions (55 °C ambient temperature)
- Heavy duty, rigid flange connection between motor and compressor
Every compressors comes with:
- Complete compressor check at final pressure, including 3.1 inspection certificate
- Long operating life with guaranteed spare parts availability (at least 25 years) from stock
Features
Direct Drive
- This power transmission provides maximum efficiency, reliability and ease of maintenance even in the most difficult conditions.
Highly efficient air cooling
- Proven and easily maintainable design with high cooling performance.
24 / 7 continuous duty
- The robust compressor design allows reliable continuous operation and thus ensures maximum availability.
V-design cylinder arrangement
- The cylinder arrangement ensures smooth running thanks to ideal mass balancing.
Turnkey solution with canopy
- Available as turnkey solution in sound proof canopy - silent and ready for operation
Specifications
-
Product Model
Mistral Series
