Product Details
Pressure: 150 – 400 barg
Suction Pressure: max. 8 barg
Volume Flow: 20 –130 m³/h
Rated Power: 15 – 55 kW

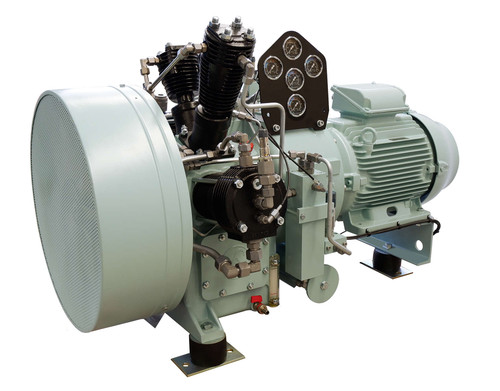

The 4-stage air-cooled high pressure compressors of the SAUER Hurricane series are the top choice for demanding applications up to 400 bar. Thanks to their directly-driven and highly-efficient air cooling system, they provide maximum reliability, efficiency and ease of maintenance even in the most difficult conditions.
Outstanding characteristics:
- Total compression divided into 4 individual stages – better cylinder cooling, lower oil requirement
- Highly efficient cooling fan – lower operating temperatures, less maintenance
- Automatic drainage between stages
- Combination of suction and discharge valves
- Solid piston and standard piston rings in high pressure stages
- Heavy duty, rigid flange connection between motor and compressor
Every compressors comes with:
- Complete compressor check at final pressure, including 3.1 inspection certificate
- Long operating life with guaranteed spare parts availability (at least 25 years) from stock
Features:
ATEX variant available
- Solutions in compliance with ISO 80079-34:2020 and the European ATEX directive 2014/34/EU.
Gas-tight design available
- The reliable, gas-tight compressor design ensures that neither gas can escape nor ambient air can contaminate the compression medium.
W-design cylinder arrangement
- The cylinder arrangement ensures smooth running thanks to ideal mass balancing.
Highly efficient air cooling
- Proven and easily maintainable design with high cooling performance.
Turnkey solution with canopy
- Available as turnkey solution in sound proof canopy - silent and ready for operation
Specifications
-
Product Model
Hurricane Series
