Description
Pressure: max. 500 barg
Suction Pressure: max. 20 barg
Volume Flow: 200 – 1,000 m³/h
Rated Power: 120 – 250 kW

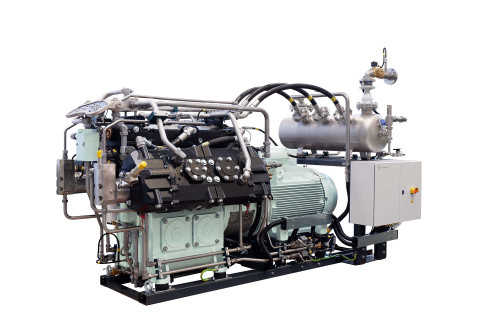

The water-cooled compressors of the SAUER 6000 series have a modular design with up to six cylinders, which allows many different variations with final pressures of up to 500 bar and a drive power of up to 230 kW. As the largest immersion piston compressors of their kind, they allow maximum performance even in the most difficult conditions.
Outstanding characteristics:
- High flexibility in compression unit configuration
- Low-vibration operation through special W- or V-arrangement of compression units
- Highly integrated and fully operational unit for foundation-free installation
- Anti-vibration mounts for structure borne noise isolation
- Integrated cooling water circuit with high performance water coolers for each cylinder
- Extensive protection systems with temperature and pressure sensors available in each stage
- Compression of several technical gases possible due to gastight crankcase and low leakage rates
- Variable frequency drive possible with defined speeds - optimization of every process
Every compressors comes with:
- Complete compressor check at final pressure, including 3.1 inspection certificate
- Long operating life with guaranteed spare parts availability (at least 25 years) from stock
Features
Magnetic coupling
- The wear-free magnetic coupling drive between compressors and motor not only guarantees hermetical gas-tightness but also is extremely low-maintenance and operates with maximum reliability.
Integrated water cooling
- The most efficient cooling solution for high drive power, reliable and easy to maintain.
ATEX variant available
- Solutions in compliance with ISO 80079-34:2020 and the European ATEX directive 2014/34/EU.
Hermetically gas-tight design available
- The reliable, hermetically gas-tight compressor design ensures that neither gas can escape nor ambient air can contaminate the compression medium.
