Description

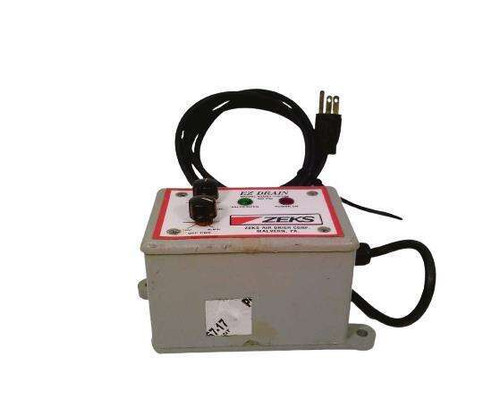

ZEKS EZDS-1 Timer Drain
The ZEKS EZDS-1 is a timer-style condensate drain designed to automatically discharge liquid that collects in compressed air system equipment. Timer drains are commonly used to keep filters, dryers, and receivers clear of water and oil carryover without manual draining.
Key Features
- Timer-controlled draining: Discharges condensate on a repeating schedule to reduce manual blow-down.
- Common compressed-air accessory: Used on equipment drain ports where condensate accumulates during operation.
- Helps protect downstream components: Reducing pooled condensate helps limit corrosion and contamination potential.
- Simple operating concept: A straightforward automatic drain option for many standard plant air systems.
- Supports routine maintenance programs: Helps standardize drain behavior across multiple pieces of equipment.
Specifications
| Model / MPN | EZDS-1 |
|---|---|
| Drain type | Timer-controlled condensate drain |
| Typical installation points | Filters, dryers, receivers, aftercoolers (low-point drains) |
| Electrical | Verify available supply at installation |
| Connection | Verify drain port size at installation |
Benefits
- Less operator workload: Reduces reliance on manual drain schedules.
- Improves condensate control: Helps prevent liquid buildup in bowls, vessels, and separators.
- Reduces water carryover risk: Keeps equipment draining more consistently over time.
- Practical retrofit option: Often used to upgrade manual drains to automatic operation.
Installation & Application Notes
- Install at a true low point and ensure discharge piping doesn’t trap liquid or backpressure the drain.
- Tune the interval/open time to match condensate production and minimize compressed-air loss.
- Inspect the drain periodically for debris and verify the valve seats properly after cycling.
- Route discharge to appropriate condensate handling (oil-water separation where required).
A timer drain is a good baseline option for automated condensate removal when you want simple, repeatable operation on a schedule.
Frequently Asked Questions
ZEKS EZDS-1 Timer Drain
▶️ Question: Why do compressed air systems need condensate drains?
Answer: Moisture condenses in receivers, filters, aftercoolers, and dryers; draining removes that liquid so it doesn’t carry into the air stream.
▶️ Question: How do I choose the right drain cycle settings?
Answer: Start conservatively, then adjust based on how much condensate is produced; the goal is to remove liquid while limiting unnecessary air discharge.
▶️ Question: What happens if condensate isn’t drained regularly?
Answer: Liquid can pool and carry downstream, increasing corrosion risk and causing problems for tools, valves, and processes.
▶️ Question: Where is the best place to install a timer drain?
Answer: At equipment low points—receiver bottoms, separator sumps, filter bowls, and dryer drain outlets.
▶️ Question: When should I consider a no-air-loss drain?
Answer: If you want to minimize air loss or your condensate load varies widely, a level-sensing no-air-loss drain can be a better match.
