Description

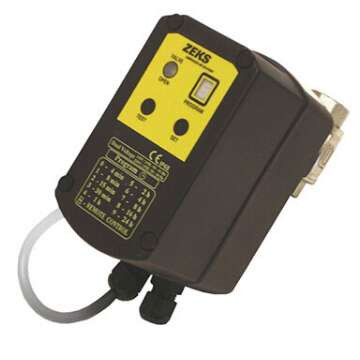

ZEKS EZDB2 EZ Drain
The ZEKS EZDB2 is an electric condensate drain (EZ Drain) designed to remove collected condensate from compressed air system components. It supports automated draining to help keep equipment low points clear of water and oil carryover.
Key Features
- Automatic condensate discharge: Helps remove condensate from equipment without relying on manual drain valves.
- Supports system cleanliness: Helps limit water accumulation that can lead to rust, contamination, and downstream issues.
- Fits common compressed-air applications: Used across filtration, drying, and receiver applications where condensate is produced.
- Serviceable drain approach: Designed to be maintained as part of routine compressed-air system upkeep.
- Electrical compatibility: Runs on 115 VAC, single-phase power for broad facility compatibility.
Specifications
| Model / MPN | EZDB2 |
|---|---|
| Drain type | Electric condensate drain (EZ Drain) |
| Electrical | 115 VAC, single-phase, 50/60 Hz |
| Typical installation points | Filters, dryers, receivers, aftercoolers (low-point drains) |
| Connection | Verify drain port size at installation |
Benefits
- Reduces manual blow-down: Helps eliminate the need to constantly open manual drains.
- Helps protect downstream equipment: Keeping condensate under control helps reduce corrosion and contamination risk.
- More consistent operation: Maintains a repeatable draining routine across operating hours.
- Cleaner work area: Controlled discharge routing helps avoid messy manual draining practices.
Installation & Application Notes
- Install at a low point and route discharge to a safe collection or condensate management system.
- If the drain is timer-controlled, tune settings to clear liquid without excessive air discharge.
- Check periodically for debris buildup and verify the drain is cycling and sealing correctly.
- Confirm voltage availability and wiring requirements before installation.
EZ Drain models are a solid fit when you want reliable, automated condensate removal on standard facility power.
Frequently Asked Questions
ZEKS EZDB2 EZ Drain
▶️ Question: What does an EZ Drain do in a compressed air system?
Answer: It removes condensate that forms in filters, dryers, receivers, and separators so liquid doesn’t build up and carry downstream.
▶️ Question: Does an automatic drain help air quality?
Answer: Yes—by keeping liquid from pooling in equipment, it helps reduce the chance of water carryover into the air system.
▶️ Question: How do I know if the drain is working?
Answer: You should see periodic condensate discharge (based on control method) and the drain should not continuously leak air.
▶️ Question: What’s the biggest cause of drain failures?
Answer: Debris/sludge in condensate and neglected maintenance are common causes; periodic inspection and cleaning help.
▶️ Question: Where should the discharge line go?
Answer: Route it to an appropriate collection point and, where required, an oil-water separator before disposal.
