Description

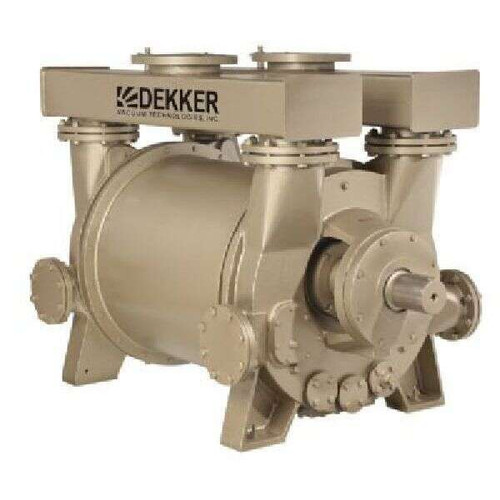

The Maxima-K is a robust, single stage design which utilizes flat port plates mounted on each side of the impeller.
The variable discharge port allows the pump to operate efficiently throughout the vacuum range. A heavy duty impeller features reinforcing rings to improve strength of the impeller blades and thus the durability of the pump.
Packed gland sealing is standard, featuring a split ring gland for ease of maintenance; mechanical seals are optional. Access plates on both sides of the pump allow for quick access to evaluate clearance and perform boroscope inspection.
The Maxima-K pumps are available in capacities ranging 1500 ACFM to 39,500 ACFM, are available in various materials/coatings and are manufactured to ISO 9001:2008 quality standards.
Bolt in replacements are available for the NASH (or Siemens) 2BE series. Selection of Maxima-K versus Maxima-C depends on operating conditions and the most efficient operating point.
