Description

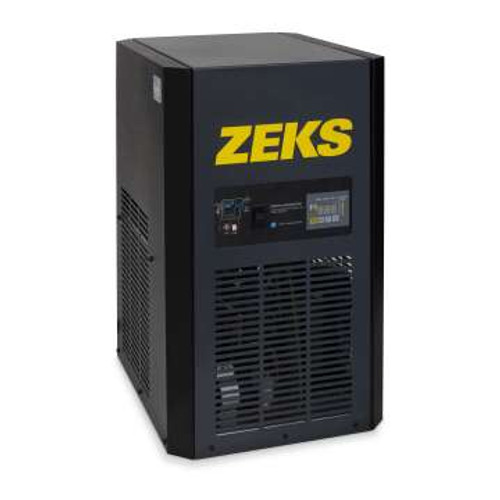

ZEKS 25NCF NC Series Non-Cycling Refrigerated Air Dryer – 25 SCFM
The ZEKS 25NCF NC Series non-cycling refrigerated air dryer is designed to deliver consistently dry compressed air for industrial applications. Rated for 25 SCFM, this refrigerated dryer helps reduce moisture in compressed air lines, minimizing corrosion, protecting downstream equipment, and helping prevent product spoilage and moisture-related downtime. It is a strong choice for compressed air systems that require dependable air treatment in a compact, efficient package.
As part of the ZEKS NC Series, the 25NCF is built for industrial use across applications where clean, dry compressed air is important for system reliability and long-term equipment performance. This model includes standard features such as a NEMA 12 electrical package, electronic drain, microprocessor controller, and remote alarm contact.
ZEKS 25NCF Specifications
| Model | 25NCF |
|---|---|
| Series | NC Series Non-Cycling Refrigerated Air Dryer |
| Rated Flow | 25 SCFM |
| Connection Size | 1/2" NPT |
| Compressor H.P. | 0.17 |
| Dimensions (W x D x H) | 16 x 17 x 18 in |
| Shipping Weight | 60 lb |
Key Features
- Non-cycling refrigerated dryer design: provides consistent moisture removal for industrial compressed air systems.
- 25 SCFM capacity: suitable for properly matched compressed air applications within the model rating.
- Microprocessor controller: supports straightforward monitoring and operation.
- Electronic drain: helps manage condensate removal efficiently.
- NEMA 12 electrical package: built for industrial environments.
- Remote alarm contact: allows integration with system monitoring when needed.
Benefits
- Helps reduce moisture-related problems: supports protection against rust, corrosion, and water contamination in compressed air lines.
- Protects downstream equipment: helps support longer service life for tools, filters, controls, and air-powered equipment.
- Supports reliable production: helps reduce unplanned downtime caused by wet compressed air.
- Compact footprint: allows easier placement in mechanical rooms and compressed air system layouts.
Standard Equipment
- NEMA 12 electrical package
- Electronic drain
- Microprocessor controller
- Remote alarm contact
Optional Equipment Adders
- Gauge Assembly (Field Installed): 800872WCH – includes compressed air temperature and pressure gauge. Two gauge assemblies are required to measure both inlet and outlet conditions.
- 3 Valve Bypass (Field Installed): 47532878001 – provides a way to isolate the dryer for service and bypass air around the dryer during maintenance. Assembly ships separately for field mounting.
Recommended Prefilter
- ZFC45P: efficient filtration with low pressure drop, using a 1 micron element with approximately 6 psid clean and dry.
Installation & Application Notes
- Install a properly sized prefilter before the dryer.
- Failure to install and maintain a prefilter may void the dryer warranty.
- Allow clearance for service access and condensate drain routing during installation.
- Optional equipment is shipped separately for field installation and may require field mounting.
- Confirm the model capacity, connection size, and electrical requirements match your compressed air system before installation.
Frequently Asked Questions
▶️ Question: What does the ZEKS 25NCF refrigerated air dryer do?
Answer: The ZEKS 25NCF removes moisture from compressed air by cooling the air and separating condensate. This helps protect downstream equipment, reduce corrosion, and improve compressed air system reliability.
▶️ Question: Is the ZEKS 25NCF the right size dryer for a 25 SCFM system?
Answer: The ZEKS 25NCF is rated for 25 SCFM and may be a good fit for systems operating within that capacity when actual operating conditions match the manufacturer’s rating basis.
▶️ Question: Why do I need a prefilter before the ZEKS 25NCF?
Answer: A properly sized prefilter helps protect the dryer from contaminants, supports reliable performance, and may be required to maintain warranty coverage.
▶️ Question: What features come standard on the ZEKS 25NCF?
Answer: Standard features include a NEMA 12 electrical package, electronic drain, microprocessor controller, and remote alarm contact.
▶️ Question: What optional accessories are available for the ZEKS 25NCF?
Answer: Optional accessories include a field-installed gauge assembly and a 3 valve bypass assembly for isolating the dryer during service.
