Description

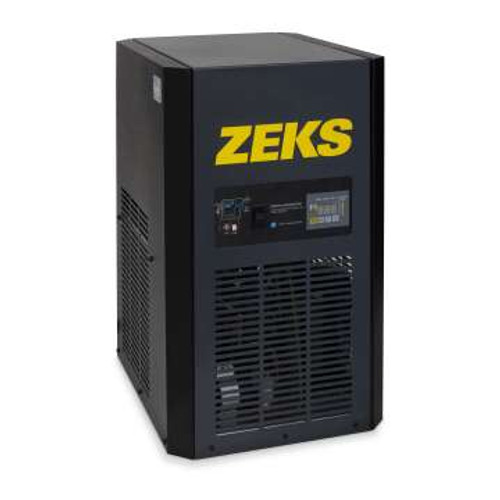

250 NCG ZEKS CFX® NC Series™ Non-Cycling Refrigerated Air Dryer
This CFX® NC Series™ non-cycling refrigerated air dryer is built for steady moisture removal in industrial compressed-air systems across the 200–1,600 SCFM range.
Key Features
- NC Series™ non-cycling design: continuous refrigeration for steady moisture removal.
- CFX® exchanger technology: designed for efficient heat transfer and low pressure drop.
- Capacity: rated for 250 SCFM.
- Connections: 1-1/2" MPT.
- Pressure rating: up to 300 PSIG.
Specifications
| Model | 250NCG |
|---|---|
| Rated Flow | 250 SCFM |
| Differential Pressure | 3.1 psid |
| Operating kW | 2.24 |
| Compressor H.P. | 1.5 |
| Max Working Pressure | 300 PSIG |
| Refrigerant Type | R404 |
| In/Out Connection Size | 1-1/2" MPT |
| Dimensions (W x D x H) | 28 x 33 x 43 in |
| Shipping Weight | 335 lb |
Benefits
- Protects downstream equipment: helps reduce moisture-related corrosion and contamination.
- Improves system reliability: supports consistent air quality for tools, controls, and processes.
- Right-sized capacity: 250 SCFM helps match system demand when applied at rating conditions.
Installation & Application Notes
- Confirm inlet pressure, inlet temperature, and ambient conditions align with the dryer rating basis for the series.
- Verify system demand does not exceed 250 SCFM at the rating conditions.
- Keep operating pressure within the unit rating (up to 300 PSIG).
- Allow clearance for service access and condensate drain routing during installation.
250 NCG ZEKS CFX® NC Series™ Non-Cycling Refrigerated Air Dryer is a strong fit when your system requirements match the listed capacity, pressure rating, and electrical configuration.
Frequently Asked Questions
250 NCG ZEKS CFX® NC Series™ Non-Cycling Refrigerated Air Dryer
▶️ Question: What is the rated capacity for this model?
Answer: This model is rated for 250 SCFM under the series rating conditions.
▶️ Question: What does a refrigerated air dryer do?
Answer: It cools compressed air to condense water vapor, then removes the condensate to help reduce moisture in the air system.
▶️ Question: What are the connections and pressure rating?
Answer: It uses 1-1/2" MPT connections and is rated up to 300 PSIG.
▶️ Question: What electrical information do I need to check?
Answer: Verify voltage, phase, and frequency match the unit nameplate before installation.
▶️ Question: What routine maintenance is typical?
Answer: Keep condenser surfaces clean, verify condensate drains operate correctly, and replace air filtration elements on schedule. It also lists refrigerant type R404.
