Description

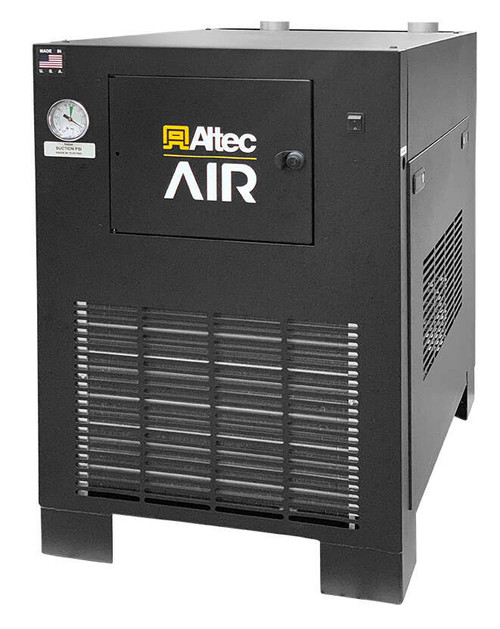

Altec AIR RAD 400 Non-Cycling Refrigerated Air Dryer
Altec AIR’s RAD Series Non-Cycling Refrigerated Air Dryers are designed to meet the demand of your compressed air system with quality components that are built to last. This configuration is rated for 400 SCFM @ 100 PSIG and operates on 575 VAC, 3 Phase, 60 Hz. This configuration includes a digital scroll compressor (D option) and includes a zero-loss drain with the D kit.
Technical Details
- Dryer Type: Non-cycling refrigerated air dryer
- Inlet Flow Capacity: 400 SCFM @ 100 PSIG
- Connection Size: 2" NPT
- Voltage: 575 VAC, 3 Phase, 60 Hz
- Option Code: D (Digital Scroll Compressor; Zero-Loss Drain Included with D Kit)
- Air Quality: ISO Class 4 - 5 (consistent, reliable dry air)
- Maximum Pressure: 232 PSIG
- Maximum Inlet Temperature: 140°F / 60°C
- Recommended Filter Kit: AR11-0400
- Sizing Basis: 100°F inlet temperature, 100°F inlet dew point, 100 PSIG inlet pressure, 45°F outlet dew point
- Variable-Condition Sizing: Corrected inlet flow capacity = Inlet Flow x Pressure Correction Factor (A) x Inlet Temp Correction Factor (B) x Ambient Temp Correction Factor (C)
Key Highlights & Benefits
- Consistent dry air: Designed for ISO Class 4 - 5 air quality.
- Automatic condensate management: Programmable automatic electronic drains.
- Digital scroll compressor: D option indicates a digital scroll compressor configuration (zero-loss drain included with D kit).
- ETL listed configurations: ETL listed configurations (pending).
- High-pressure capability: Rated up to 232 PSIG maximum pressure.
- High inlet temperature limit: Handles inlet temperatures up to 140°F / 60°C.
