Description

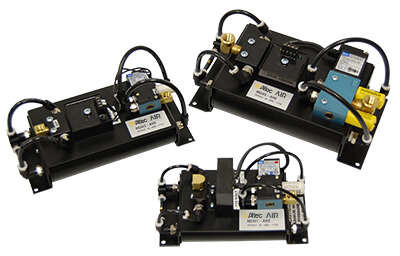

Altec AIR MDH3 Heatless Regenerative Desiccant Air Dryer (120V, 1.1 SCFM)
The Altec AIR MDH3 is a compact heatless regenerative desiccant air dryer designed for small fractional-horsepower compressed air systems. It provides a standard -40°F/°C pressure dew point to help protect moisture-sensitive pneumatic tools, controls, and downstream components.
Technical Details
- Inlet Flow (rated): 1.1 SCFM @ 100 PSIG
- Standard Outlet Dew Point: -40°F/°C (PDP)
- Maximum Pressure: 120 PSIG
- Maximum Inlet Temperature: 120°F / 49°C
- Connection Size: 1/8" NPT
- Power: 120 VAC, 1 Phase, 60 Hz
- Recommended Filter Kit: AD11-MDH14
Key Highlights & Benefits
- Low-dew-point performance: -40°F/°C PDP standard outlet dew point.
- Compact, point-of-use sizing: Rated for fractional-horsepower compressed air applications.
- Application-ready limits: Up to 120 PSIG and 120°F inlet temperature.
- System protection: Use the recommended filter kit to support dryer performance.
