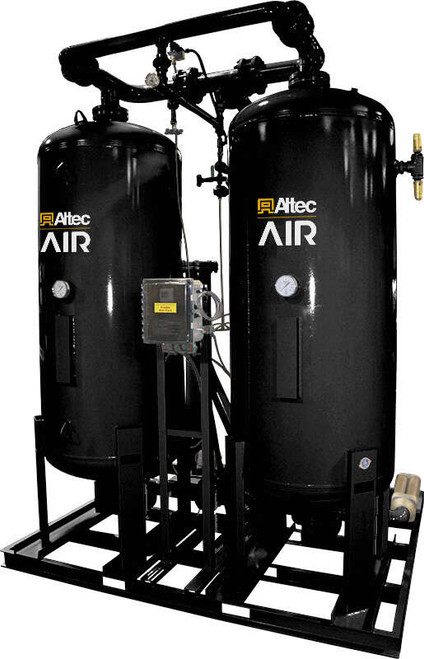

Altec AIR HLD-0100-1-E3 HLD Series Low Dew Point Heatless Desiccant Air Dryer
The Altec AIR HLD Series is a low dew point, heatless regenerative desiccant dryer built to protect compressed air systems that require exceptionally dry air. This model is rated for 100 SCFM and is engineered to deliver -100°F (Pressure Dew Point) air to help reduce corrosion, freezing, and moisture-driven contamination in downstream tools, valves, controls, and process equipment.
The HLD design alternates between two desiccant towers: one tower dries compressed air through adsorption while the other regenerates automatically using a controlled purge of dry air. This continuous adsorption/regeneration cycle supports consistent dry air delivery without external heaters and is packaged for straightforward installation.
EcoTronic option (as configured): Includes Altec AIR’s EcoTronic Energy Management System (dew point demand control) to help reduce purge air consumption during lower demand periods while maintaining low dew point air performance.
Technical Details
- Model: HLD-0100-1-E3
- ISG Product ID: ALTEC_IAC-HLD-0100-1-E3
- Dryer Type: Low Dew Point Heatless Desiccant Air Dryer (Heatless Regenerative Twin Tower)
- Rated Dew Point: -100°F (Pressure Dew Point)
- Rated Inlet Flow: 100 SCFM
- Purge Consumption: 23.0 SCFM @ 100 PSIG
- Max Working Pressure: 150 PSIG
- Max Operating Temperature: 120°F
- Electrical: 120V / 60Hz / 1 Phase
- Inlet/Outlet Connection: 1" NPT
- Weight: 780 lb
- Dimensions: H 87 × W 42 × D 32 (in)
- Configuration Note: Factory option package (-3)
Key Highlights & Benefits
- Ultra-dry air protection: -100°F pressure dew point helps protect moisture-sensitive systems.
- Heatless twin tower operation: Continuous adsorption drying with automatic purge regeneration.
- Packaged for installation: Skid-mounted system designed for straightforward setup and service access.
- Integrated filtration (standard): Factory-installed pre-filter and after-filter with differential pressure gauges.
- Control readiness: Includes a NEMA 4 control panel and single electrical hookup.
- EcoTronic (as configured): Dew point demand control to reduce purge usage during low-load operation.
- Option package (as configured): Built to match the model suffix (-3).
Why it matters
- Protects equipment and piping: Helps reduce corrosion, sticking valves, and moisture-related failures.
- Improves reliability in harsh conditions: Supports low dew point air delivery for demanding industrial environments.
- Reduces downstream contamination: Filtration helps protect desiccant and downstream air quality.
- Service-friendly design: Packaged layout supports routine maintenance and inspection.
