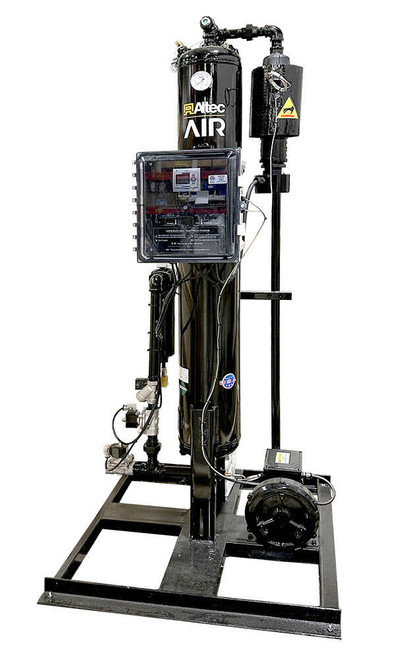

Altec AIR HBS-0060-1 HBS Series Single Tower Heat Regenerative Desiccant Air Dryer
The Altec AIR HBS Series is a single tower heat regenerative desiccant air dryer built to deliver higher quality compressed air than a typical refrigerated dryer while helping reduce operating cost. Each HBS dryer ships as a true all-in-one package with factory-installed pre and after filters, rugged construction, and a simple design engineered for dependable performance in industrial compressed air systems.
This HBS-0060-1 configuration is rated for 60 SCFM @ 100 PSIG and is designed for applications that need consistent moisture control with outlet dew points from 0°F to −50°F (depending on conditions). A 3-way system bypass is available if you need to isolate the dryer for maintenance without interrupting air service.
Technical Details
- Dryer Type: Single Tower Heat Regenerative Desiccant Dryer
- Inlet Flow: 60 SCFM @ 100 PSIG
- Maximum Working Pressure: 200 PSIG
- Outlet Dew Point: 0°F to −50°F (depending on conditions)
- Inlet/Outlet Connection: 1" NPT
- Power Requirement: 120 VAC / 1 Phase / 60 Hz
- Packaged Filtration: Factory-installed pre + after filters; oil removal to 99.9% @ 0.3–0.6 microns; particle removal to 99.9% @ 1 micron
- Dimensions: 32" W × 32" D × 76" H
- Weight: 270 lb
- Included Options (per part number): None (standard configuration)
Key Highlights & Benefits
- Higher quality dry air: Designed for less than 1% remaining RH and dew points down to −50°F to help reduce corrosion, freezing, and moisture-related contamination.
- Lower operating cost vs refrigerated drying: Heat regenerative design is built to reduce energy consumption compared to refrigerated dryers in many plant conditions.
- All-in-one packaged filtration: Pre + after filtration helps protect downstream equipment and supports desiccant life and performance.
- Durable regeneration components: Low watt density heater and industrial-duty blower support steady regeneration with simplified maintenance.
- Built for uptime: Rugged, simple construction with minimal moving components supports reliable operation in demanding industrial environments.
