Description

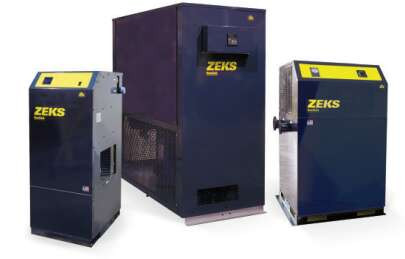

ZEKS 36HPHSG HeatSink™ Cycling Refrigerated Air Dryer (High Pressure)
The ZEKS 36HPHSG is a HeatSink™ cycling refrigerated air dryer listed in the ZEKS High Pressure Dryers section. It is rated for 6000 SCFM with a 38°F pressure dew point rating (per ZEKS table).
This high-pressure model is listed with 680 PSIG max working pressure, 8" FLG flanged inlet/outlet connections, R410A refrigerant, and 4.5 psid differential pressure at rated conditions (per ZEKS table).
Key Features
- HeatSink™ cycling operation: cycles refrigeration to reduce energy use during lighter demand.
- CFX® exchanger technology: designed for efficient heat transfer and low pressure drop.
- Dew point performance: rated for 38°F (Pressure Dew Point).
- Capacity: rated for 6000 SCFM.
- Pressure rating: up to 680 PSIG.
Specifications
| Model | 36HPHSG |
|---|---|
| Dryer Type | HeatSink™ Cycling Refrigerated Air Dryer (High Pressure) |
| Flow Capacity | 6000 SCFM |
| Differential Pressure | 4.5 psid |
| Operating Power | 13.2 kW |
| Max Working Pressure | 680 PSIG |
| Rated Dew Point | 38°F (Pressure Dew Point) |
| Operating Voltage | 460 V / 60 Hz / 3 Phase |
| Dimensions (in) | W 81.46 × D 99.42 × H 97.84 |
| Shipping Weight | 7569 lb |
| End Connection | 8" FLG |
| Refrigerant | R410A |
| Compressor Horsepower | (2) 9.7 |
Benefits
- Protects downstream equipment: helps reduce moisture-related corrosion and contamination.
- Improves system reliability: supports consistent air quality for tools, controls, and processes.
- Supports efficiency at part load: cycling operation can reduce run time when demand drops.
- Right-sized capacity: 6000 SCFM helps match system demand when applied at rating conditions.
Installation & Application Notes
- Confirm inlet pressure, inlet temperature, and ambient conditions align with the dryer rating basis for the series.
- Verify system demand does not exceed 6000 SCFM at the rating conditions.
- Keep operating pressure within the unit rating (up to 680 PSIG).
- Allow clearance for service access and condensate drain routing during installation.
ZEKS 36HPHSG HeatSink™ Cycling Refrigerated Air Dryer (High Pressure) is a strong fit when your system requirements match the listed capacity, pressure rating, and electrical configuration.
Frequently Asked Questions
ZEKS 36HPHSG HeatSink™ Cycling Refrigerated Air Dryer (High Pressure)
▶️ Question: What is the rated capacity for this model?
Answer: This model is rated for 6000 SCFM under the series rating conditions.
▶️ Question: What dew point performance can I expect?
Answer: It is rated for 38°F (Pressure Dew Point) pressure dew point under the standard rating conditions for the series.
▶️ Question: What is the maximum working pressure?
Answer: It is rated up to 680 PSIG.
▶️ Question: What power does it require?
Answer: The unit configuration lists 460 V / 60 Hz / 3 Phase.
▶️ Question: What routine maintenance is typical?
Answer: Keep condenser surfaces clean, verify condensate drains operate correctly, and replace air filtration elements on schedule. It also lists footprint W 81.46 × D 99.42 × H 97.84.
