Description

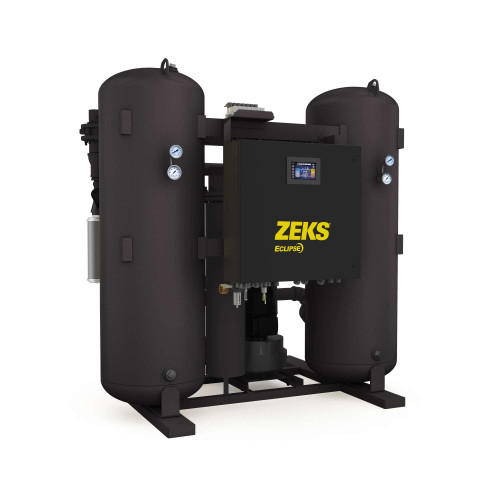

ZEKS Eclipse 1200ZBB Blower Purge Desiccant Dryer
The ZEKS Eclipse 1200ZBB is a heated blower regeneration desiccant dryer designed to reduce moisture in compressed air systems for corrosion control and dependable downstream performance. It is rated for 1200 SCFM and uses a desiccant bed with an automatic regeneration cycle to support consistent drying.
The ZBB series includes a NEMA 4 electrical enclosure and a DPC™ programmable controller with a 7" color touchscreen to execute valve switching and monitor dryer operation, including real-time valve position and tower status, alarm/event history, and key pressure/temperature readings. Standard functions also include AccuTemp™ solid-state heater control, Power Saver energy control, Bi-Mode operation, and Compressed Air Cooldown (uses approximately 8–10% dry process air for a one-hour cooldown period; average purge consumption remains less than 2.5%).
Key Features
- Low‑dew‑point air: regenerative desiccant drying to help protect moisture‑sensitive processes.
- Regeneration system: designed to restore desiccant performance each cycle for consistent drying.
- Dew point performance: rated for -40°F.
- Capacity: rated for 1200 SCFM.
- Pressure rating: up to MAWP 150 psig; Minimum pressure 75 psig (flow rating at 100 psig and 100°F inlet).
Specifications
| Model | 1200ZBB |
|---|---|
| Dryer Type | Heated Blower Regeneration Desiccant Dryer (Blower Purge) |
| Flow Capacity | 1200 SCFM |
| Max Working Pressure | MAWP 150 psig; Minimum pressure 75 psig (flow rating at 100 psig and 100°F inlet) |
| Rated Dew Point | -40°F |
| Operating Voltage | 460 V / 60 Hz / 3 Phase |
| Dimensions (in) | W 78 × D 59 × H 80 |
| Weight | 4091 lb |
| End Connection | 3" NPT |
Benefits
- Supports moisture-sensitive applications: helps prevent condensation in critical air lines.
- Improves uptime: consistent drying reduces water-related issues in equipment and controls.
- Right-sized capacity: 1200 SCFM helps match system demand when applied at rating conditions.
Installation & Application Notes
- Confirm inlet pressure and temperature align with the dryer rating basis to maintain rated dew point performance.
- Verify system demand does not exceed 1200 SCFM at the rating conditions.
- Keep operating pressure within the unit rating (up to MAWP 150 psig; Minimum pressure 75 psig (flow rating at 100 psig and 100°F inlet)).
- Allow clearance for service access and condensate drain routing during installation.
ZEKS Eclipse 1200ZBB Blower Purge Desiccant Dryer is a strong fit when your system requirements match the listed capacity, pressure rating, and electrical configuration.
Frequently Asked Questions
ZEKS Eclipse 1200ZBB Blower Purge Desiccant Dryer
▶️ Question: What is the rated capacity for this model?
Answer: This model is rated for 1200 SCFM under the series rating conditions.
▶️ Question: What dew point performance can I expect?
Answer: It is rated for -40°F dew point performance under the series rating conditions.
▶️ Question: What is the maximum working pressure?
Answer: It is rated up to MAWP 150 psig; Minimum pressure 75 psig (flow rating at 100 psig and 100°F inlet).
▶️ Question: What power does it require?
Answer: The unit configuration lists 460 V / 60 Hz / 3 Phase.
▶️ Question: What routine maintenance is typical?
Answer: Inspect filtration, verify valves and controls function correctly, and service desiccant media per maintenance intervals to maintain dew point performance.
