Product Details
Pressure: 150 – 400 barg
Suction Pressure: max. 5 barg
Volume Flow: 10 – 25 m³/h
Rated Power: 5.5 – 15 kW

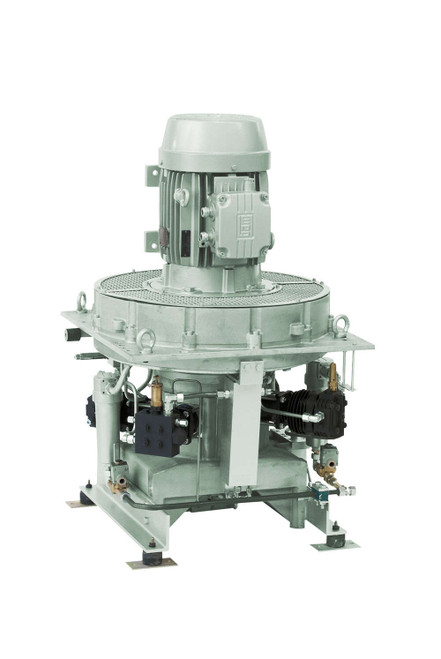

The air-cooled high pressure compressors of the SAUER Tornado series combine compact design with maximum performance and final pressures of up to 400 bar, thanks to their vertical design.
Outstanding characteristics:
- Total compression divided into 3 or 4 individual stages – better cylinder cooling, lower oil requirement
- High efficiency cooling fan for lower operating temperatures and less maintenance
- Vertical construction – footprint smaller than 0.5 m²
- Low maintenance requirements – in intervals of 2,500 hours
- Heavy duty, rigid flange connection between motor and compressor
Every compressors comes with:
- Complete compressor check at final pressure, including 3.1 inspection certificate
- Long operating life with guaranteed spare parts availability (at least 25 years) from stock
Features:
Direct Drive
- This power transmission provides maximum efficiency, reliability and ease of maintenance even in the most difficult conditions.
Highly efficient air cooling
- Proven and easily maintainable design with high cooling performance.
24 / 7 continuous duty
- The robust compressor design allows reliable continuous operation and thus ensures maximum availability.
Vertical design - small footprint
- Ideal for operating situations with limited space for installation.
Turnkey solution with canopy
- Available as turnkey solution in sound proof canopy - silent and ready for operation
Specifications
-
Product Model
Tornado Series
