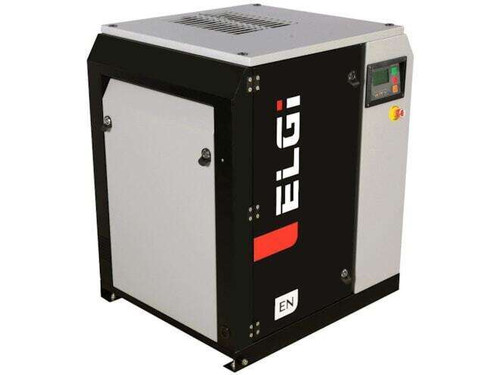

ELGi EN05 7.5 HP EN Series Rotary Screw Air Compressor
175 PSIG • 200 V • 3-Phase • Air-Cooled • Total Air System (Receiver Tank + Refrigerated Dryer + Filters)
ELGi’s EN series electric lubricated rotary screw air compressors are built for reliability, low maintenance requirements, and a compact footprint for industrial applications where space and operating cost matter.
What’s Included
- Rotary screw compressor on 60-gallon receiver tank.
- Refrigerated dryer (EGRD020) for general-purpose moisture removal.
- Airmate filters: pre-filter (AF-0041P) and fine filter (AF-0041F).
Key Features
- Oil-injected, air-cooled rotary screw design built for continuous-duty shop and industrial air demands.
- Encapsulated airend and belt-drive airend design for reliability and serviceability across the EN range.
- TEFC NEMA Premium efficiency motor with Class F insulation across the range.
- Compact footprint and simplified maintenance access for small mechanical rooms and crowded production floors.
- Best-in-class warranty coverage: 1-year bumper-to-bumper, 6-year airend, and 5-year package warranty (terms apply).
Specifications
| MPN | EN05-175-60T-G2C |
|---|---|
| Series / Model | ELGi EN Series / EN05 |
| Motor Power | 7.5 HP |
| Nominal Pressure | 175 PSIG |
| Airflow at Nominal Pressure | 21.0 CFM |
| Electrical | 200 V / 3 Phase / 60 Hz |
| Cooling | Air-Cooled |
| Configuration | Total Air System (Receiver Tank + Refrigerated Dryer + Filters) |
| Receiver Tank | 60 Gallon |
| Included Filtration | AF-0041P (pre) + AF-0041F (fine) |
| Included Dryer | EGRD020 Refrigerated Dryer |
Benefits
- Right-sized performance for common plant air tools, packaging, maintenance, and light manufacturing air needs.
- Package options let you standardize installation: base-mount for custom system design, or tank/dryer packages for faster deployment.
- Integrated air treatment helps protect tools, valves, and downstream processes from moisture and contamination.
Installation & Application Notes
- Verify your electrical service matches the unit nameplate before installation; use a licensed electrician for connections and protection sizing.
- Plan a condensate management method for the receiver and downstream air treatment components.
- Refrigerated dryers are a common choice for general plant air; choose desiccant drying if you need very low dew point air.
- Confirm system airflow demand does not exceed the compressor’s rated capacity at your selected pressure.
Frequently Asked Questions
ELGi EN05 7.5 HP EN Series Rotary Screw Air Compressor
▶️ Question: What’s the difference between base mount, tank mount, and Total Air System packages?
Answer: Base-mount units are the compressor package only (ideal for tying into an existing air system). Tank-mount units add a receiver tank and timer drain for a compact footprint. Total Air System packages add a receiver tank plus integrated drying and filtration to improve air quality and simplify installation.
▶️ Question: Do tank-mount EN packages include a water separator?
Answer: Base-mount EN packages ship with a water separator (EWS038-A). Tank-mount packages do not include a water separator, so add separation/filtration at the compressor discharge if your application needs it.
▶️ Question: Which dryer should I choose: refrigerated or desiccant?
Answer: Refrigerated drying is a strong fit for general-purpose plant air where you want dependable moisture removal with lower complexity. Desiccant drying is typically selected when you need much lower dew points for moisture-sensitive processes, instruments, or pneumatic controls.
▶️ Question: What electrical service is required for this unit?
Answer: This configuration is 200 V, 3-phase, 60 Hz. Confirm your facility voltage and available phase match, and size wiring, disconnects, and overcurrent protection per local code and the compressor nameplate.
▶️ Question: What maintenance items should I plan for on an oil-injected rotary screw system?
Answer: Plan for routine oil and filter changes, intake filtration service, and periodic inspection of belts and cooling airflow paths. Proper filtration and drying help reduce downstream contamination and moisture-related issues.
▶️ Question: What warranty coverage is included?
Answer: EN series compressors include 1-year bumper-to-bumper coverage, a 6-year airend warranty, and a 5-year package warranty (terms and conditions apply).
