Product Details

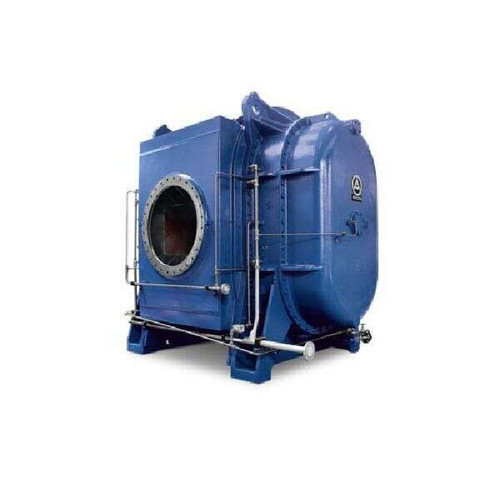

GQ process gas blowers are ideal for use in steel plants for the compression of process, cooling, and seal gas. These blowers are often used as 2-stage units and are up to the most extreme challenges.
- FIELDS OF APPLICATION:
- Especially used in direct reduction plants for conveying of process- and cooling gas.
- Operating pressure range up to max. pe=2,5 bar where the medium has the corresponding inlet pressure.
- Max. pressure difference 1100 mbar.
- Especially used in direct reduction plants for conveying of process- and cooling gas.
- Operating pressure range up to max. pe=6 bar where the medium has the corresponding inlet pressure.
- Max. pressure difference 1500 mbar.
- DESIGN:
Housing compression-proof for PN 2,5. Cylinder with noise reducing chamber on the discharge side, housing with connections for water injection - and water flushing, as well as for lubrication - and purge oil supply systems.
- Housing compression-proof for PN 6 (only GQ 20f20 and GQ 21.21).
Cylinder with noise reducing chamber on the discharge side, housing with connections for water injection - and water flushing, as well as for lubrication - and purge oil supply systems.
- SHAFT SEALINGS:
- Conveying chamber by single-acting oil-purged mechanical seals in combination with labyrinth seals.
- Drive shaft is sealed by 3 radial seal rings.
- DIRECTION OF FLOW:
- Horizontal, selective to the left or to the right
- DRIVE:
- Either via flexibly coupled spur gear or direct coupling with drive motor. Via flexibly coupled spur gear.
