Product Details
Advantages

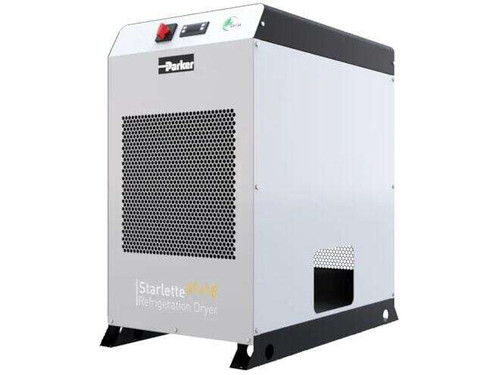

• Parker StarlettePlus-E refrigeration dryers are developed around a state-of-theart aluminum heat exchanger (E-Pack), with a patent pending all-in-one design.
• The E-Pack heat exchanger is designed with a large air/air heat exchanger to pre-cool the incoming hot, saturated compressed air and therefore reduce energy consumption.
• The highly efficient E-Pack design results in a refrigeration circuit that uses a smaller volume of refrigerant than other comparable dryers and offers one of the lowest absorbed powers in the industry.
• The E-Pack design utilizes low pressure drop, cross flow heat exchangers to reduce operational costs. • The E-pack heat exchanger includes a high efficiency stainless steel demister separator for liquid removal over all operating conditions.
• Environmentally friendly, low Global Warming Potential (GWP) refrigerant gas, R513A, on all units.
• All models are equipped as standard with a digital controller that includes an indication of compressed air temperature, volt free alarm contact, service reminder and integral timed drain control.
• All StarlettePlus-E models are ETL listed.
• Optional Energy Saving (ES) models (SPS075 – SPS0250) saves energy by matching power consumption to compressed air demand. The ES models adjust to partial load conditions by allowing the refrigerant compressor to cycle off.
Specifications
-
Air Dryer Type
Refrigerated
-
CFM
75
-
Hertz
60 HZ
-
Max PSI
232 PSI
-
Phase
1 Phase
-
Product Model
SPS075
-
Model
SPS075-A11516016TIU
-
Voltage
115
-
In/Out Connection
1" NPT-F
