Product Details

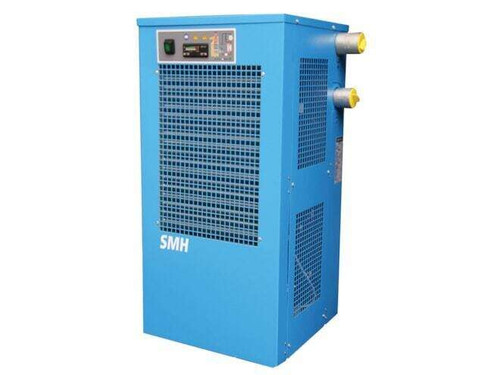

"Schulz SMH High Temp Dryers eliminate the need for separate aftercooler and moisture separators, conserving valuable floor space. This also means less equipment to install and maintain. Plus, it saves energy normally lost with an aftercooler. With SMH High Temp Dryers it is no longer necessary to upsize the dryer compensate for. High inlet temperature or high ambient temperature conditions. Schulz SMH dryers are designed to accept up to 194 F inlet air temperatures and operate in 113 F ambient conditions. For proper sizing to required dew points, reter to the Nominal CFM Rating performance table below. Standard features: Built in aftercooler circuit with separate drain Lower pressure drops Energy efficient refrigeration compressors All units run at less than 70 dbA sound levels DMC electronic controllers operate each dryer Built-in aftercooler with separate auto drain Energy efficient refrigeration compressors"Specifications
-
Air Dryer Type
High Temp
-
CFM
30
-
Hertz
60 HZ
-
Max Inlet Temp. (F)
180
-
Phase
1 Phase
-
Model
SMH-030-UP
-
Voltage
115
-
In/Out Connection
1/2" NPT-F
