Product Details

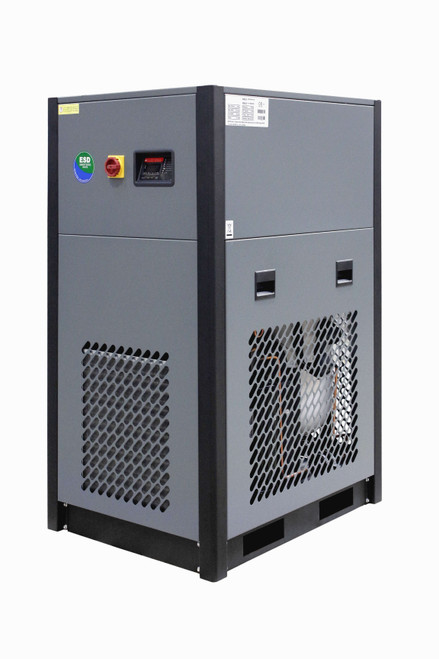

The DRYTEC SDE-US Series Non-Cycling Refrigerated Air Dryer is a compact design that incorporates integrated pre and post-filtration into the chassis, saving space and providing flexible installation options. The SDE-US Series features a low-pressure drop which saves on air compressor energy consumption, a 3-in-1 heat exchanger design that provides longevity and efficiency in cooling, and digital controllers for ease of monitoring and use.
- R134a refrigerant
- Controllers:
- Digi-Pro (10 to 510 SCFM models)
- ESD-3 (620 to 5600 SCFM models)
- Pre-filter and post-filter included (10 to 2750 SCFM models only)
- 3100 to 5600 SCFM models require filters to be purchased separately
Specifications
-
In/Out Connection
1 1/2" NPT
-
Air Dryer Type
Non-Cycling Refrigerated
-
CFM
150
-
Max Inlet Temp. (F)
140
-
Max PSI
230 PSI
-
Phase
1 Phase
-
Voltage
115
