Product Details

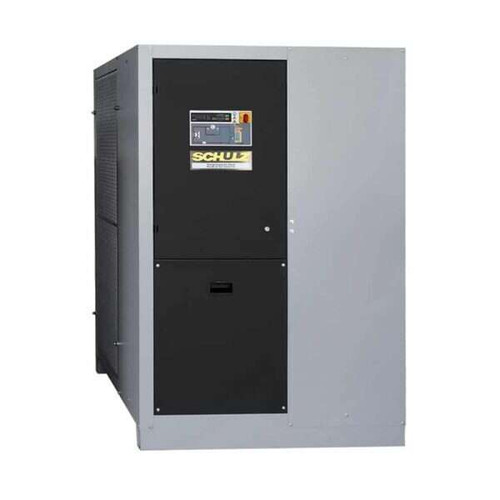

Schulz improves it’s range of compressed air dryers with the development of the SACT series (Aluminium Cooling Technology), focused to reduce energy consuption. The components of SACT range, from refrigerant to materials of construction, have been selected with maximum respect for the environment and their ability to be recycled. • Low power consumption thanks to the ALU-DRY heat exchanger, high efficiency compressors, innovative hot gas by-pass valve and zero loss drain condensate system • High efficiency compressor • Tropicalised air condenser • Condenser protection filter • High efficiency fan(s) • Water condenser • High discharge temperature switch • Automatic condensing pressure control • High and low refigerant safety pressure switch • Automatic hot gas by-pass control • Zero loss drain • Low pressure drop even with load variances • Constant pressure Dew Point with differing load conditions • Functionally even at maximum working conditions (air inlet 160°F and ambient 120°F).Specifications
-
Air Dryer Type
Non-Cycling Refrigerated
-
CFM
1250
-
Hertz
60 HZ
-
Max Inlet Temp. (F)
160
-
Phase
3 Phase
-
Model
SACT1250-UR
-
Voltage
460
-
In/Out Connection
3" FLG
