Product Details

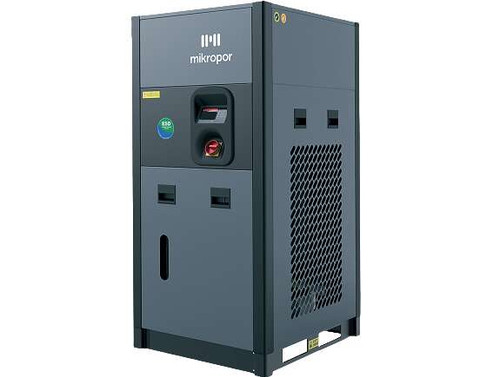

Mikropor Cycling Dryers cools a special liquid and stores it in a cold tank having 1 C temperature. This liquid is cycled in the dryer to cool down compressed air. This technology helps the customers to consume much less energy when the dryer gets 5-95 % air flow.
MCY Series Air Dryers are highly reliable, efficient, have small space requirements and offer low cost ownership. Integration of pre / post filtration within the dryer cabinet saves labor time, installation cost and valued production space. The compact size also offers flexibility and economy during transportation.
- Best-in-class low package pressure drop saves energy consumption from the supplying air compressor.
- Thermal mass technology offers stable pressure dewpoint at varying loads.
- Mikropor state of the art “3 in 1” cast aluminium heat exchanger provides unmatched longevity & cooling.
- Glycol cooling components are all stainless steel.
- 150 F Max inlet temp design max air flow.
Specifications
-
Air Dryer Type
Cycling Refrigerated
-
Hertz
60 HZ
-
Max Inlet Temp. (F)
120
-
Max PSI
230 PSI
-
Product Model
MCY-US
-
Bypass Valve
No
-
Indoor Protection
No
-
Outdoor Protection
No
-
Insulation
No
