Product Details

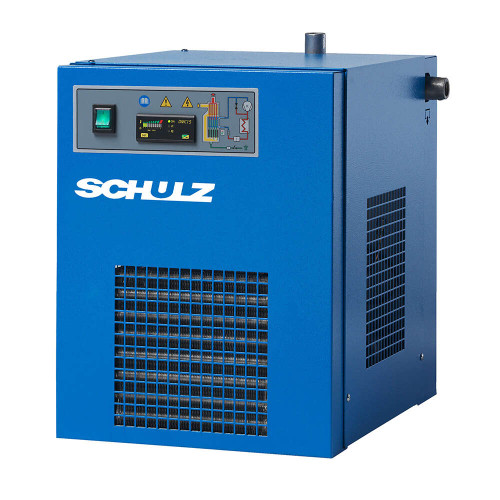

The ADS Schulz line of air dryers was designed to facilitate inspection and maintenance operations. The panels are easily removable and allow immediate access to internal components. ADS Schulz dryers are equipped with a quick-disconnected automatic drain valve which does not require any special tools for maintenance and cleaning. ADS Schulz dryers have excellent performance, even in situations where ambient and inlet temperatures are elevated. The dryer’s operation is monitored by an electronic controller which digitally indicates the temperature and dew point, controls the drain valve through a timer, and the condenser fan through a probe. The refrigerant is circulated through the system using high-effi ciency compressors. These compressors have totally new design that brings low levels of power consumption and high dependability.Specifications
-
Air Dryer Type
Refrigerated
-
CFM
220
-
Hertz
60 HZ
-
Max PSI
203 PSI
-
Phase
1 Phase
-
Voltage
230
-
In/Out Connection
1 1/2" NPT-F
