Product Details
- Pre-filtration and post-filtration included - integrated in dryer
- Standard outlet pressure dew point: -40 °F
- Optional outlet pressure dew point: -100 °F
- Standard intelligent power supply: 12 - 24 VDC/ 100 - 240 VAC; 50/60 Hz
- Min. / max. air inlet temperature: 35 °F / 120 °F
- Min. / max. ambient temperature: 41 °F / 120 °F
- Min. / max. operating pressure: 58 / 232 psig
Specifications
-
Flow Rate (scfm)
4
-
In/Out Connection
3/8" NPT
-
Drain Type
BEKOMAT
-
Hertz
50 HZ, 60 HZ
-
Max Inlet Temp. (F)
120
-
Max PSI
232 PSI
-
Model

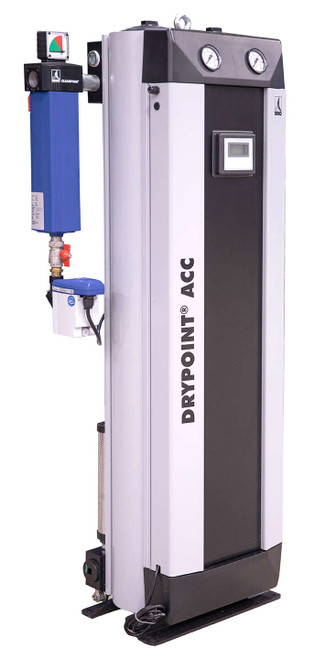

DRYPOINT® ACC
