Product Details
Pressure: 10 – 80 barg
Volume Flow: 75 – 315 m³/h
Rated Power: 15 – 55 kW

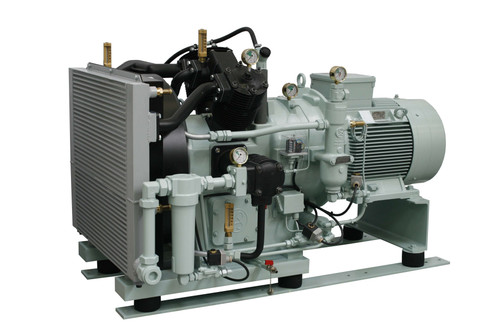

The 3-stage air-cooled compressors of the PASSAT series feature among the best-sellers in Sauer's product range. By combining 3-stage compression with air cooling, they offer low compression temperatures together with unmatched reliability, efficiency and ease of maintenance.
Outstanding characteristics:
- Low-vibration operation through special W-arrangement of compression units
- Oil pump drive via gearbox
- Condensate drainage system after every stage
- Reliable operation, even under extreme conditions (55 °C ambient temperature)
- Heavy duty, rigid flange connection between motor and compressor
Every compressors comes with:
- Complete compressor check at final pressure, including 3.1 inspection certificate
- Long operating life with guaranteed spare parts availability (at least 25 years) from stock
FEATURES:
Direct Drive
- This power transmission provides maximum efficiency, reliability and ease of maintenance even in the most difficult conditions.
Highly efficient air cooling
- Proven and easily maintainable design with high cooling performance.
24 / 7 continuous duty
- The robust compressor design allows reliable continuous operation and thus ensures maximum availability.
Gas-tight design available
- The reliable, gas-tight compressor design ensures that neither gas can escape nor ambient air can contaminate the compression medium.
Turnkey solution with canopy
- Available as turnkey solution in sound proof canopy - silent and ready for operation
Specifications
-
Product Model
Passat Series
