Product Details
Pressure: 150 – 400 barg
Volume Flow: 50 – 140 m³/h
Rated Power: 20 – 75 kW

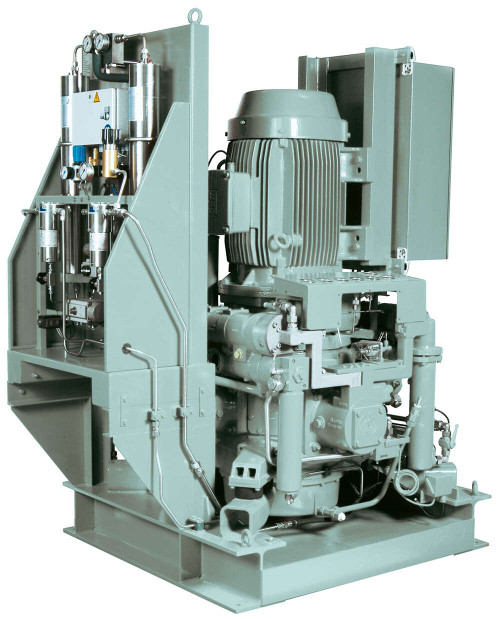

The 4-stage water-cooled high pressure compressors of the SAUER 5000 series are renowned for their excellent reliability and extremely low noise emissions and vibrations. The compact design of the vertical crankshaft makes the compressors easy to maintain and allows complete balancing of inertial forces.
Outstanding characteristics:
- Vertical construction – full compensation for free inertial forces, even the slightest vibration
- Replaceable cooler inserts in suspended configuration
- Very low piston speed for reduced vibrations and sound profile
- Dry liners – no seal between oil, water and air areas
- Heavy duty, rigid flange connection between motor and compressor
Every compressors comes with:
- Complete compressor check at final pressure, including 3.1 inspection certificate
- Long operating life with guaranteed spare parts availability (at least 25 years) from stock
Features:
Direct Drive
- This power transmission provides maximum efficiency, reliability and ease of maintenance even in the most difficult conditions.
Integrated water cooling
- The most efficient cooling solution for high drive power, reliable and easy to maintain.
24 / 7 continuous duty
- The robust compressor design allows reliable continuous operation and thus ensures maximum availability.
Vertical design - small footprint
- Ideal for operating situations with limited space for installation.
Specifications
-
Product Model
5000 Series
